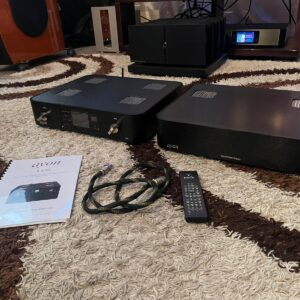

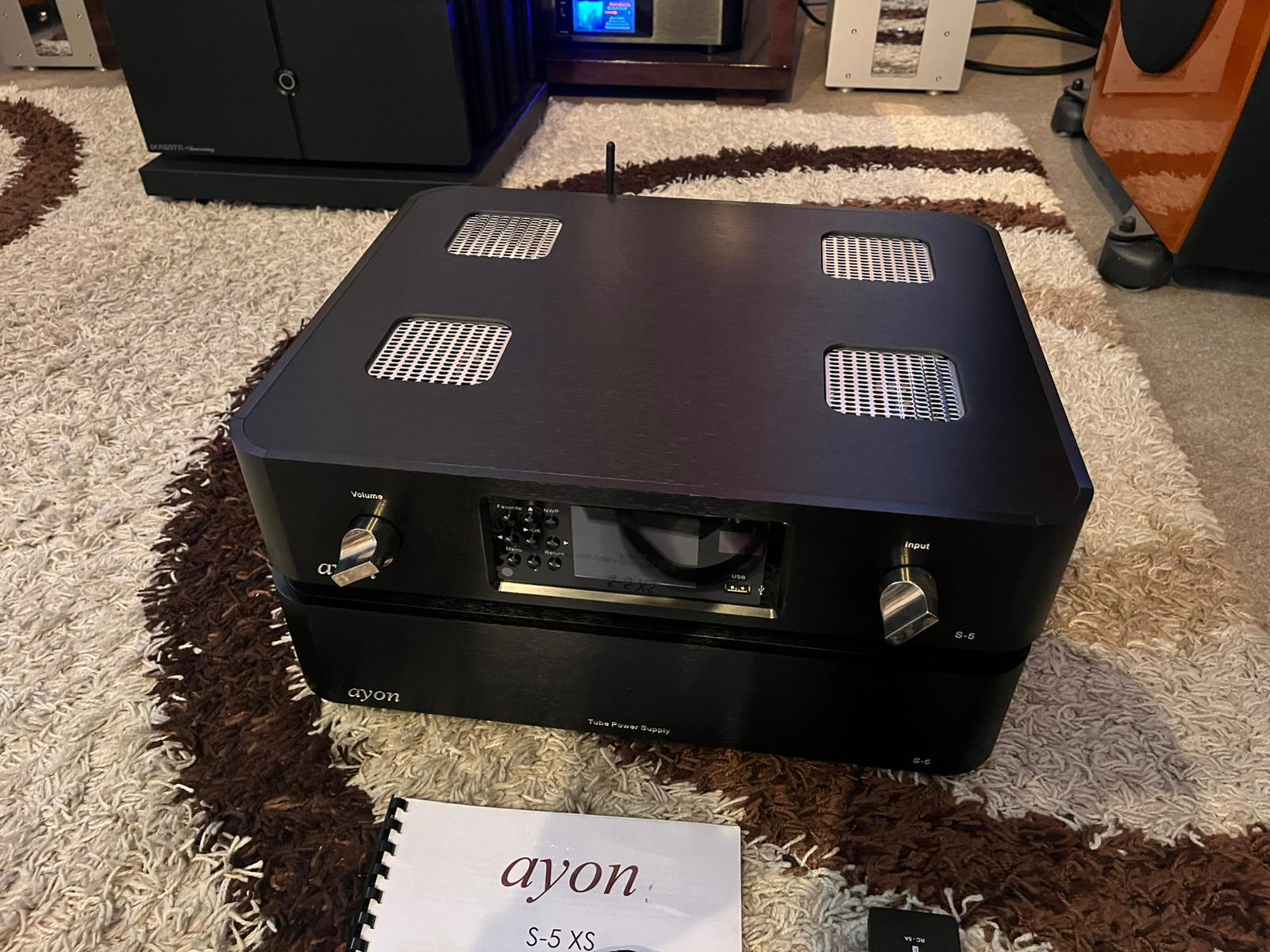

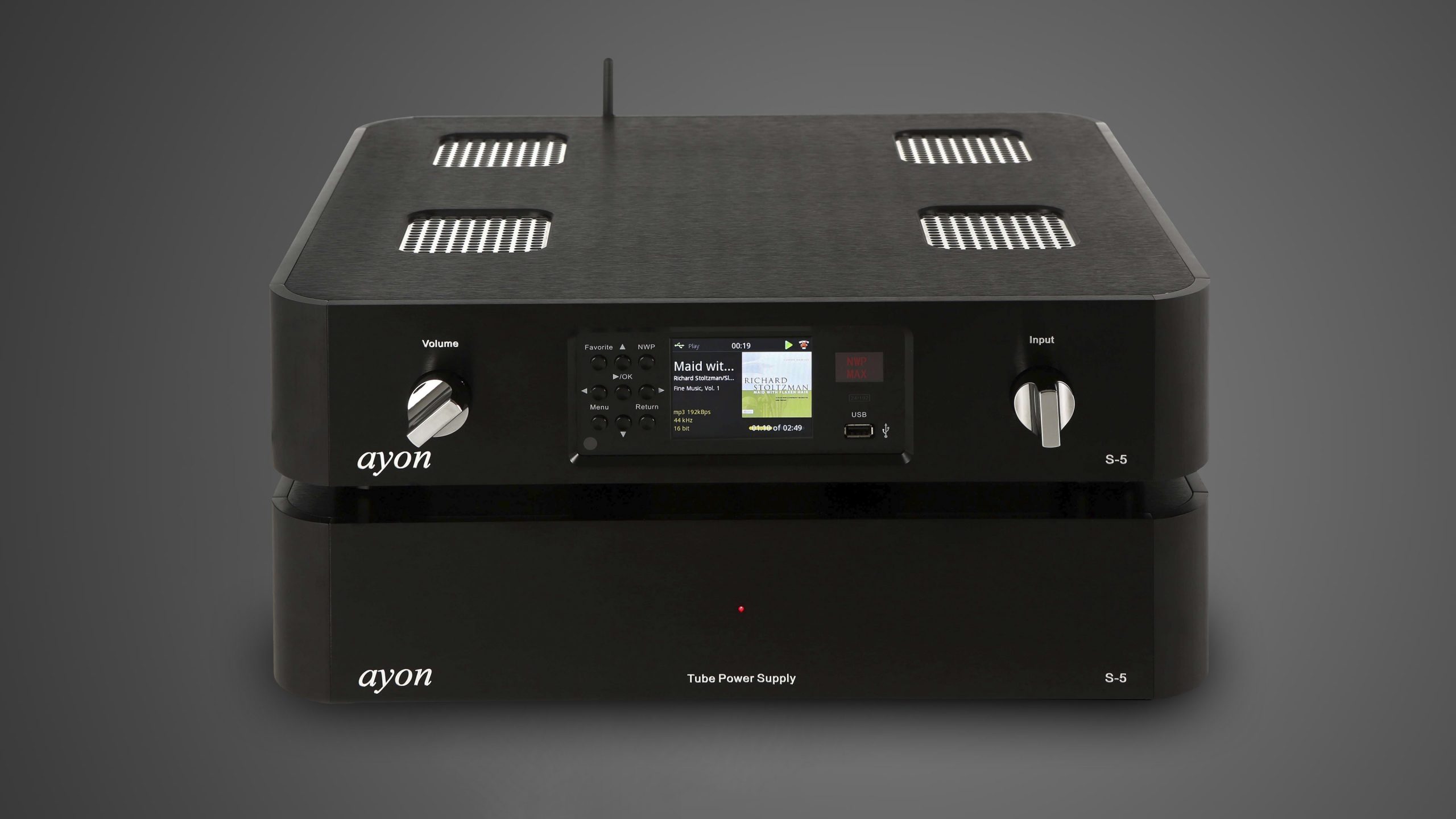

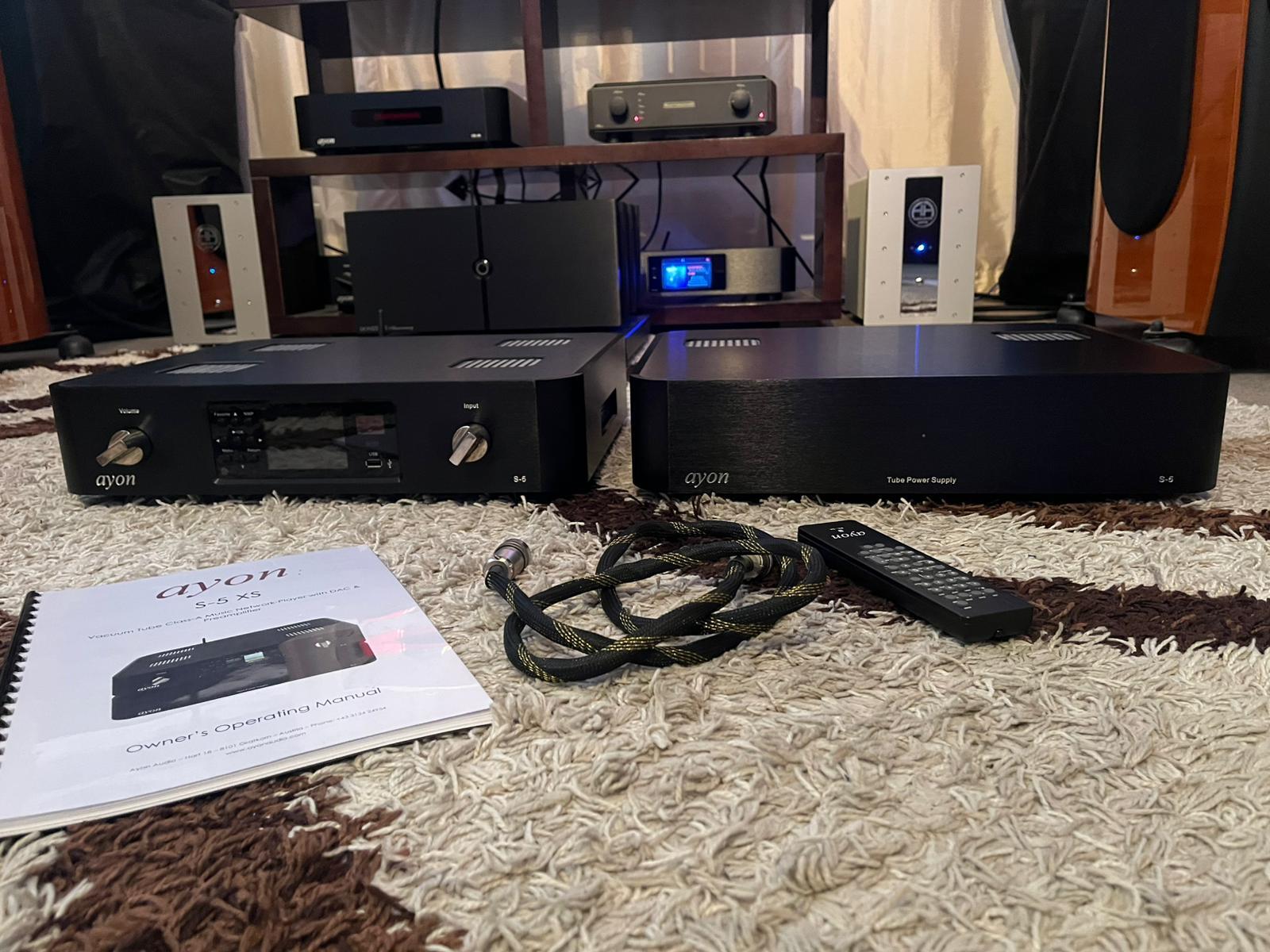

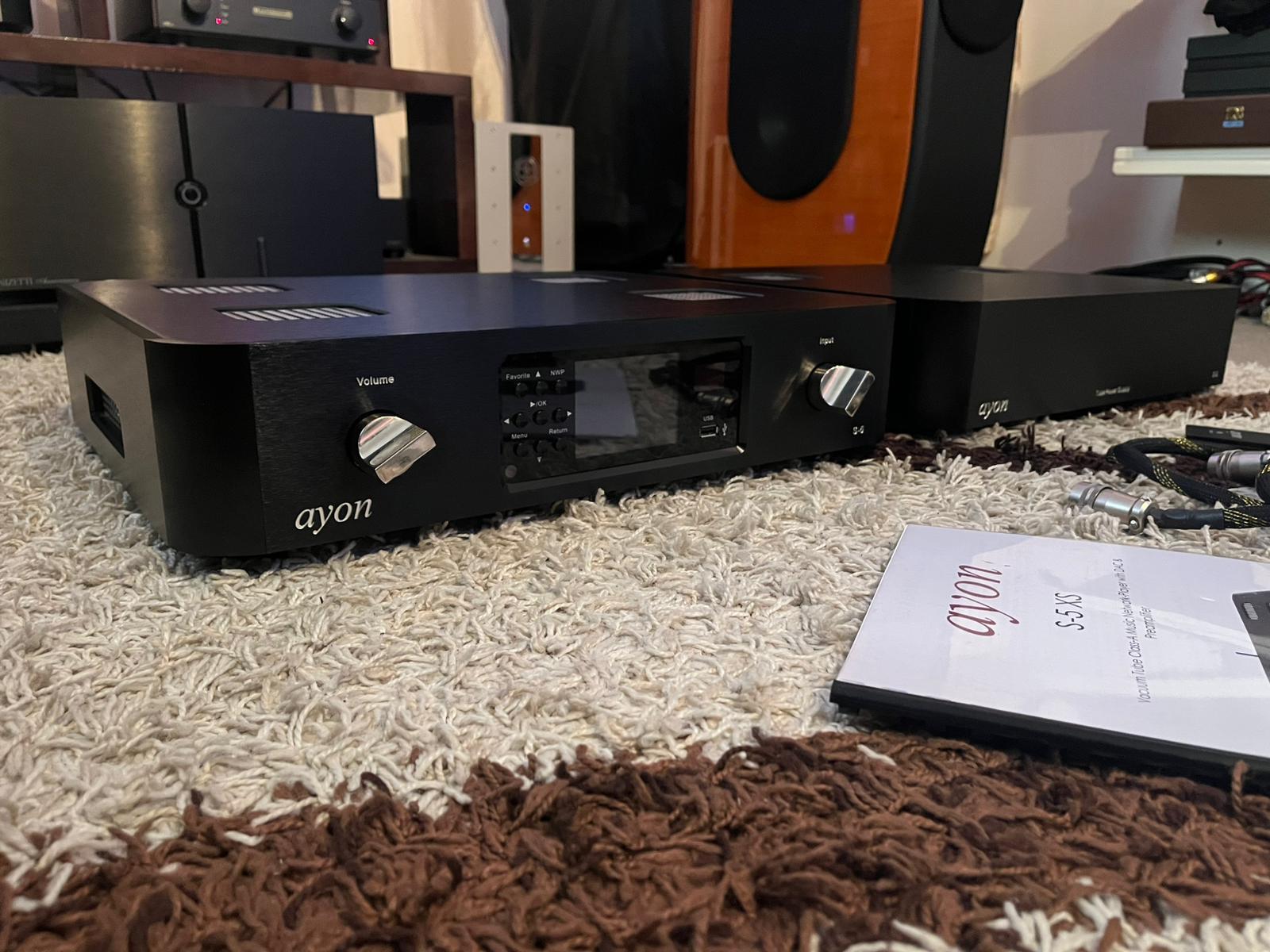

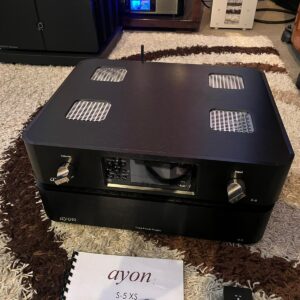

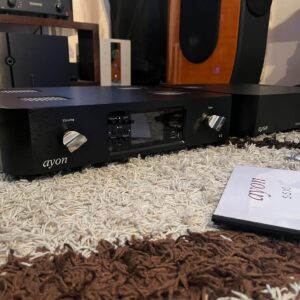

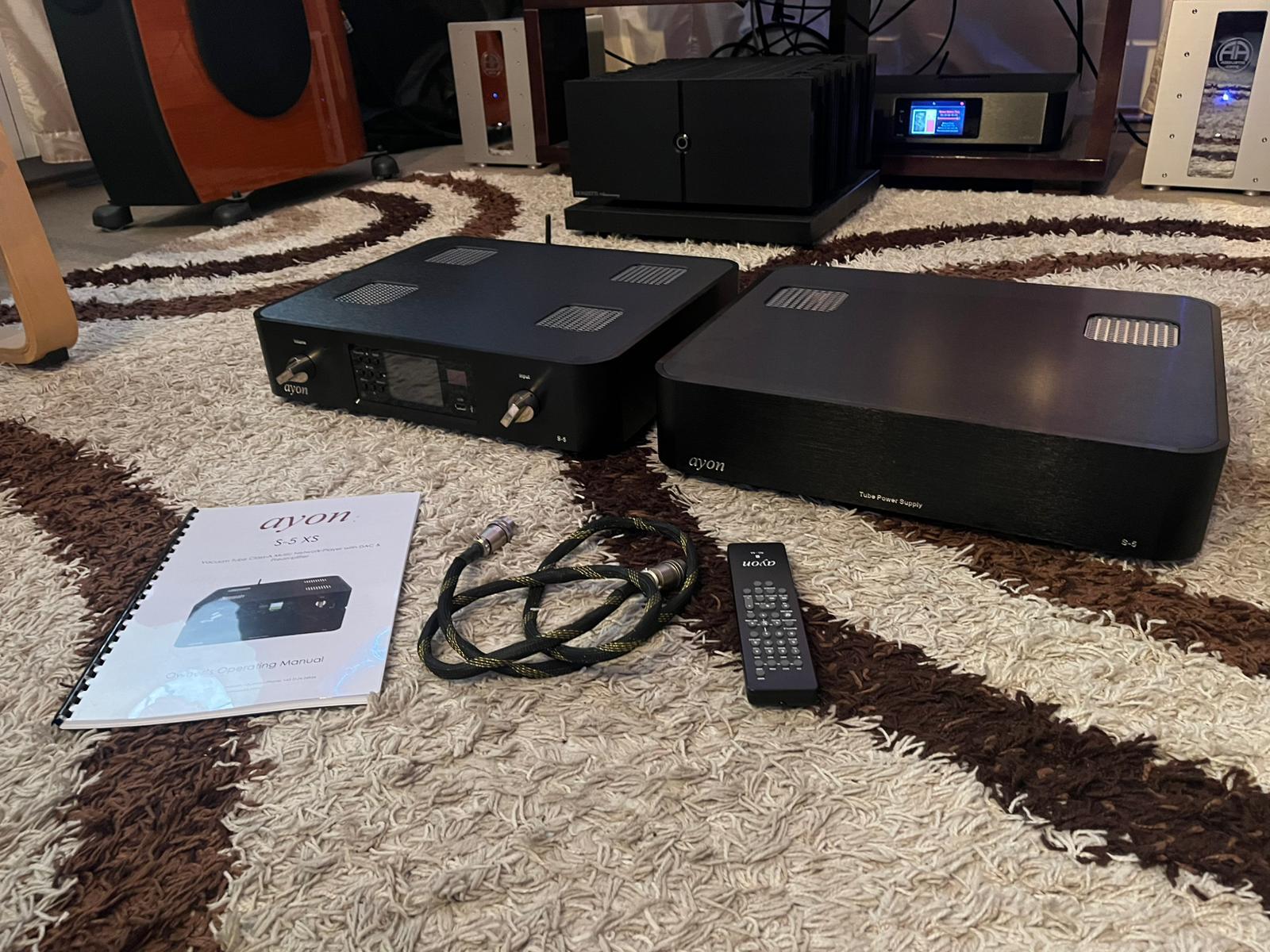

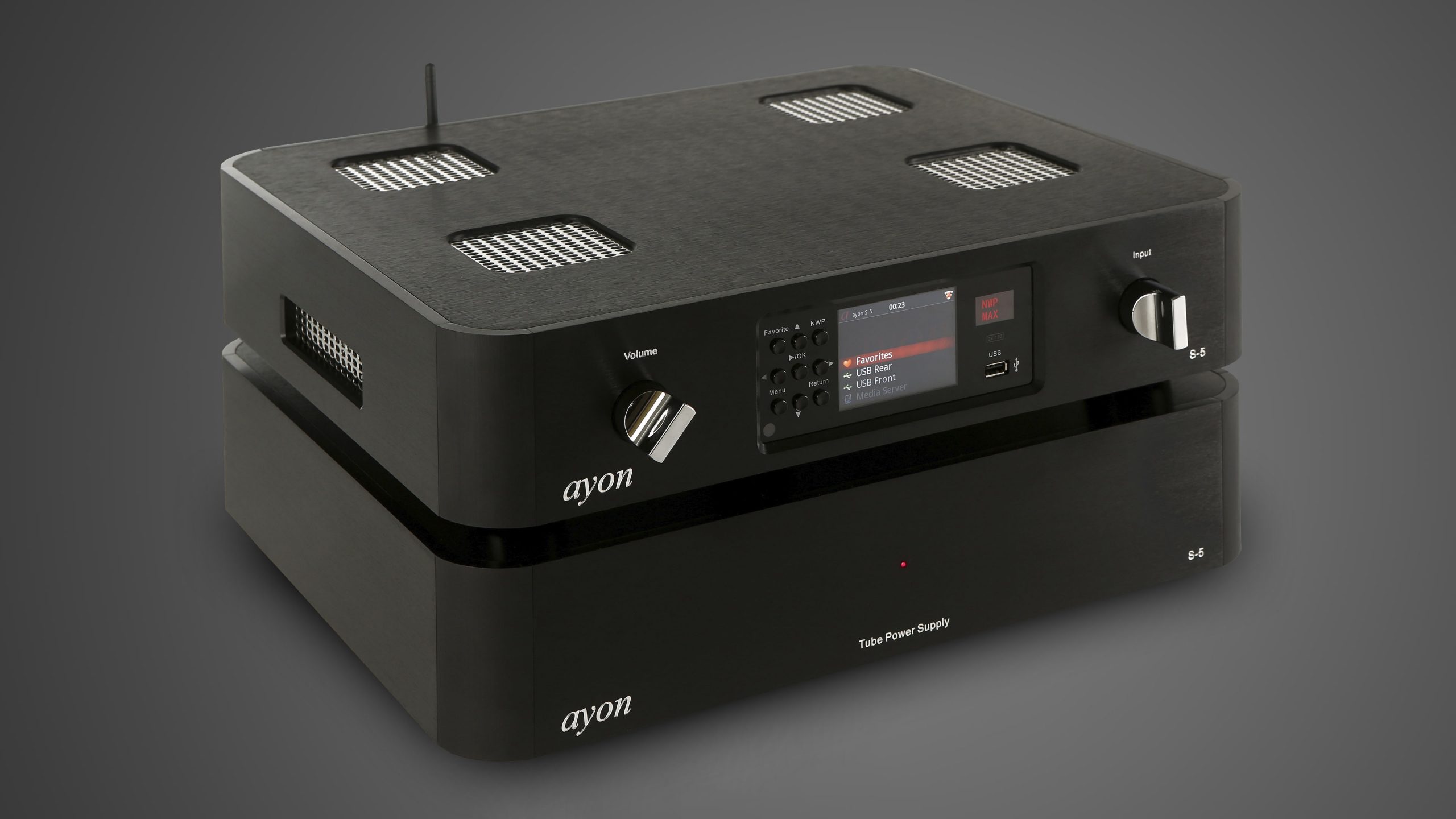

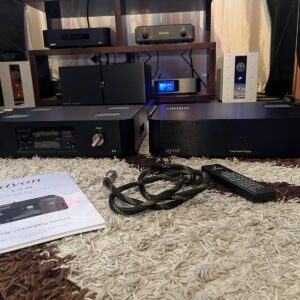

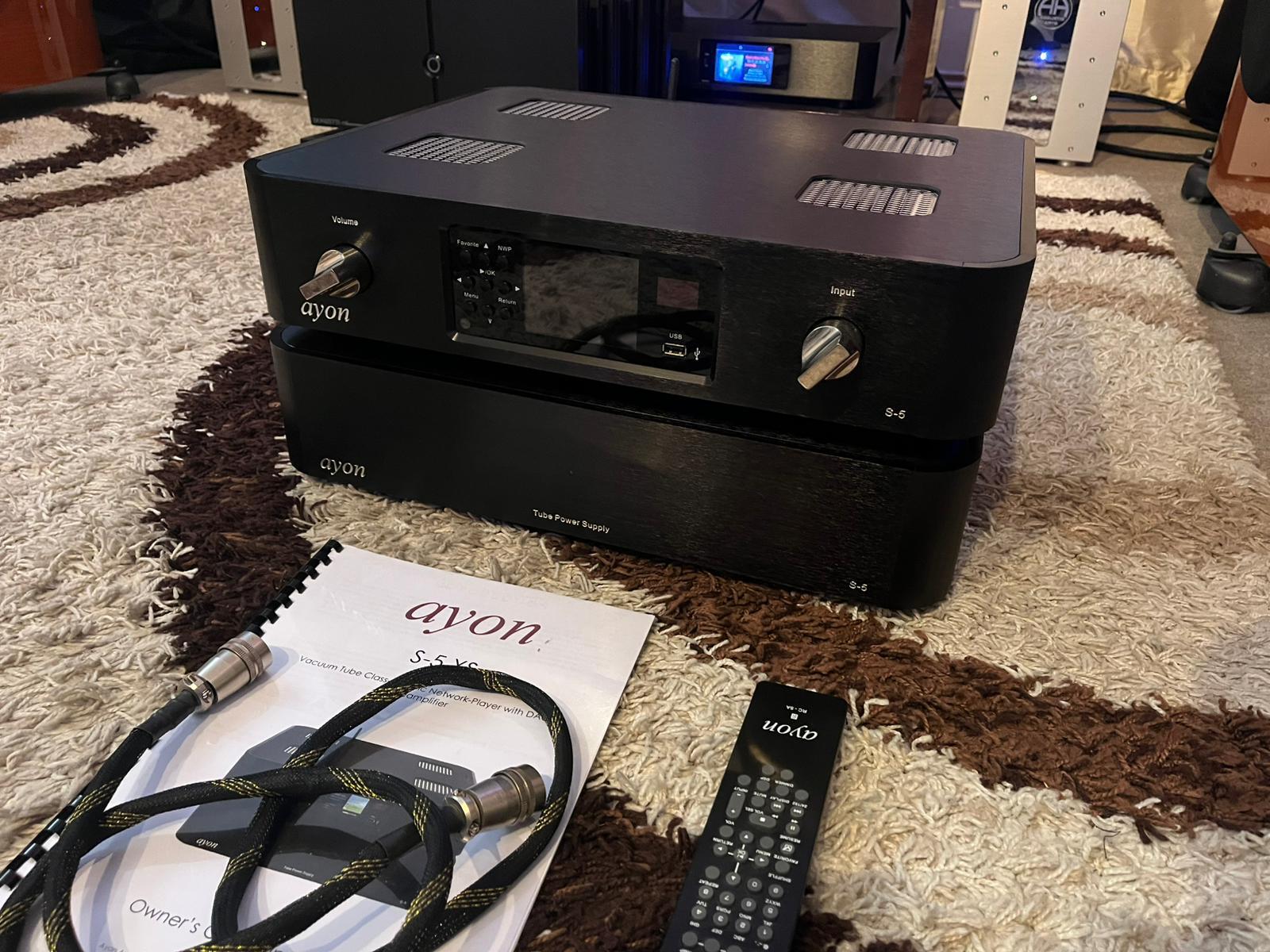

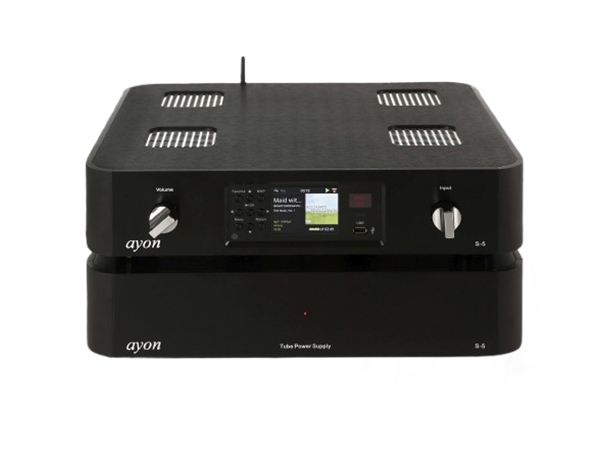

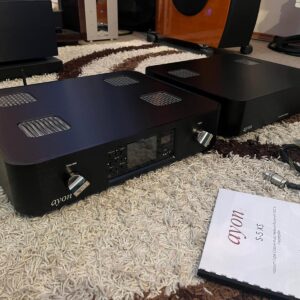

Network-Player Ayon S-5 XS
Conversion rate 192kHz / 24 bit
Upsampling for all PCM signals – switchable up to 24-192
DAC confirguration Fully symmetrical / 2 x Dual mono
DAC equipments 8 x BB1704
Tube complement – outputstage 4 x 6922
Tube complement – power supply 4 x 6Z4
Dynamic range > 115dB
Channel separation >105dB 20 Hz to 20 kHz
Output level @1 kHz / 0,775V -0dB /RCA 2.8V fixed or 0 – 2.8V rms variable
Output level @1 kHz / 0,775V -0dB /XLR 5.6V fixed or 0 – 5.6V rms variable
Output impedance Single-Ended-RCA ≥900 Ω
Output impedance Balanced-XLR ≥900 Ω

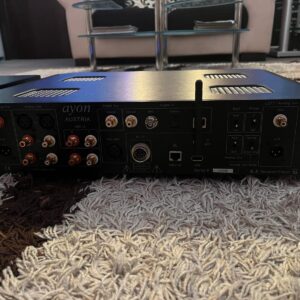

Digital output 75 Ω S/PDIF (RCA)
Digital inputs 75 Ω S/PDIF, TosLink , 110 Ω AES/EBU 75 Ω BNC, 12S Front & rear mounted USB type ‘A’ socket for USB “pen”/hard disk drive
Network inputs RP-SMA plug Wifi Aerial input (“wireless” network connection)
RJ45/LAN Gigabit Ethernet socket (“wired” network connection)
S/N ratio > 110 dB
Frequency response 20Hz – 20kHz +/- 0.3dB
Total harmonic distortion @ 1kHz < 0.002%
Remote control Yes
Analog – Line Inputs & output 2 pair IN/RCA, 1 pair IN/XLR and 1 pair out
Analog – Main outputs 1 pair / RCA & 1 pair / XLR
Dimension (Wide x Deep – incl. terminals x High – incl. feet) cm Main unit 48 x 39 x 12 cm

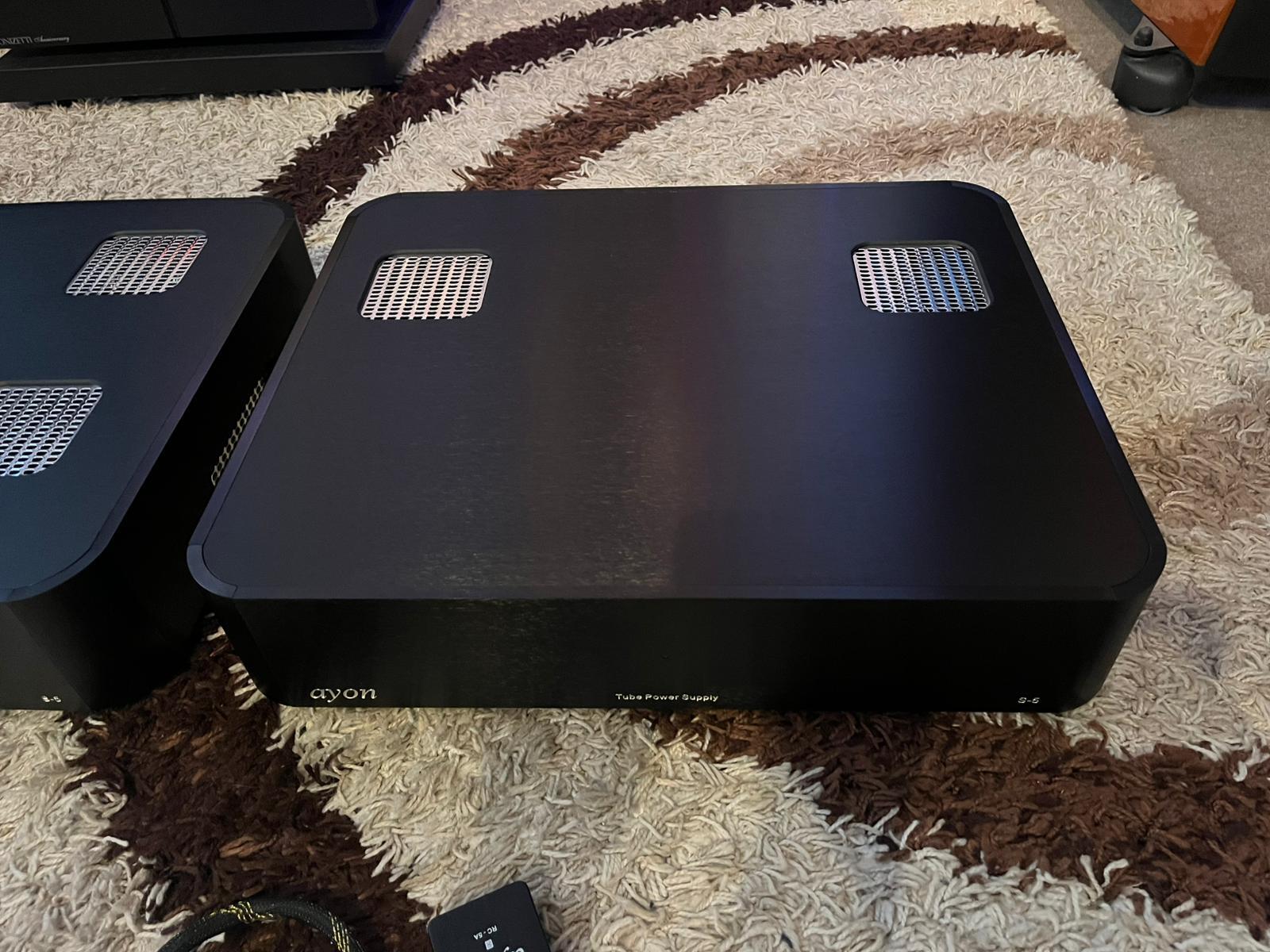

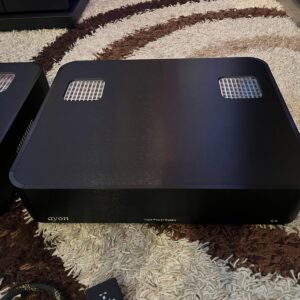

Power supply 48 x 39 x 12 cm
Weight, unit only 12 kg Main unit / 14.5kg P.S.
